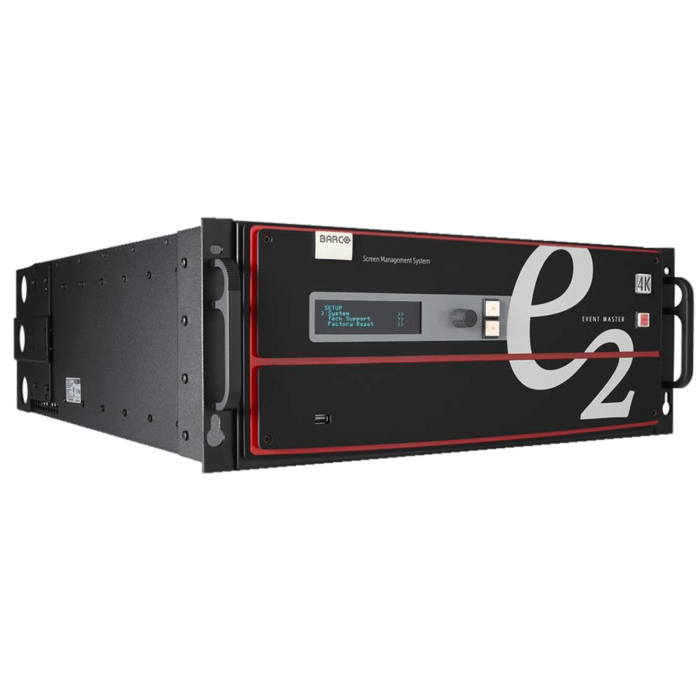

E2 GEN2 Screen Management Processor

Full show control in a single box


Awesome Features

  • Massive HD I/O
  • Expandable

The king of all switchers, the E2 has been one of the cornerstone devices in the live events industry. Expandability and upgradeability have allowed this screen switcher to push shows to new limits and is known by technicians globally.
Large Venue, Live Events, Large LED
Full show control in a single box

Manufacture Notes

Raising the bar for screen management, the E2 presentation systems provide superior image quality, exceptional input and output density, great expandability and durability. Supporting native 4K input and output, it was the first screen management system to manage 4K projector blends with refresh rates up to 60Hz with full 4:4:4 color sampling and 12bit processing. A truly versatile system, it offers eight mixable PGM outputs and four scaled Aux Outputs for full show control within a single box. Multiple E2s can be linked together to process extremely large pixel canvases supporting the largest displays available. Go 4K all the way With up to 40 inputs and 18 outputs, the E2 Gen 2 processor provides full screen control. The E2 Gen 2 offers 16 4K inputs and 8 4K outputs enabling impressive pixel processing power with increased processing speed. Whether native or scaled inputs, single cable 4K60p, two connectors or four, this HDCP-compliant system manages it all. Thanks to its linkable chassis, it can easily expand beyond the capabilities of a single box without the need for additional external processing and matrix routing to distribute the signals. Simple servicing and control The E2 Gen 2 comes with a straightforward cross-platform user interface that provides touchscreen ergonomics. As the presets are stored on the chassis it enables easy control via third-party systems. Multiple users can control the system simultaneously, and the API allows third-party developers to create custom control programs and interfaces. The 4K Multiviewer and its comprehensive overview of any input and output in the system allows for full situational awareness while creating the most impressive experiences. Thanks to its modular design, users can simply add new input or output cards to support future signal interfaces. Designed for life on the road The rugged E2 Gen 2 features a steel chassis that’s able to withstand the challenging conditions of life on the road. What’s more, it offers screen control in a compact form factor of only four rack units, which makes it easy to ship and install. Thanks to its modularity and the improved dual redundant power supplies, the E2 Gen 2 is extremely reliable and easy to service in the field. Layers, layers, layers The E2 offers an extremely flexible layer management system. With up to 32 layers available in HD, the E2 Gen 2 can customize the layer configuration to meet the needs of your application. The layers can be configured to support a mixture of HD and 4K resolutions maximizing your system flexibility.

Why this Solution

The E2 Gen2 is by far the most requested screen management system in the business. We’re here to give our customers what they want and they want E2.

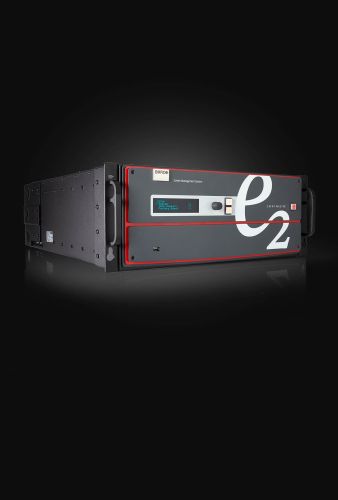

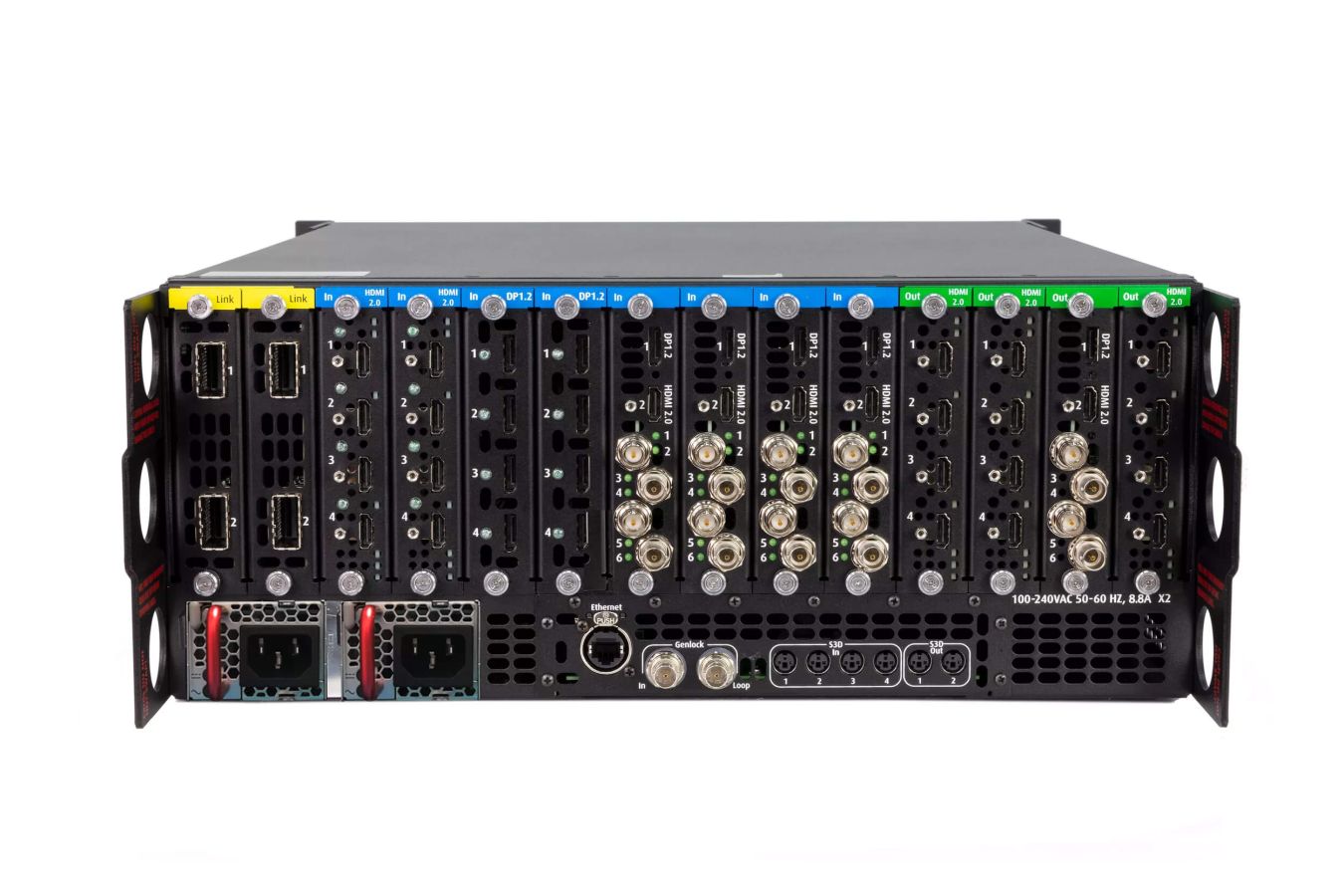

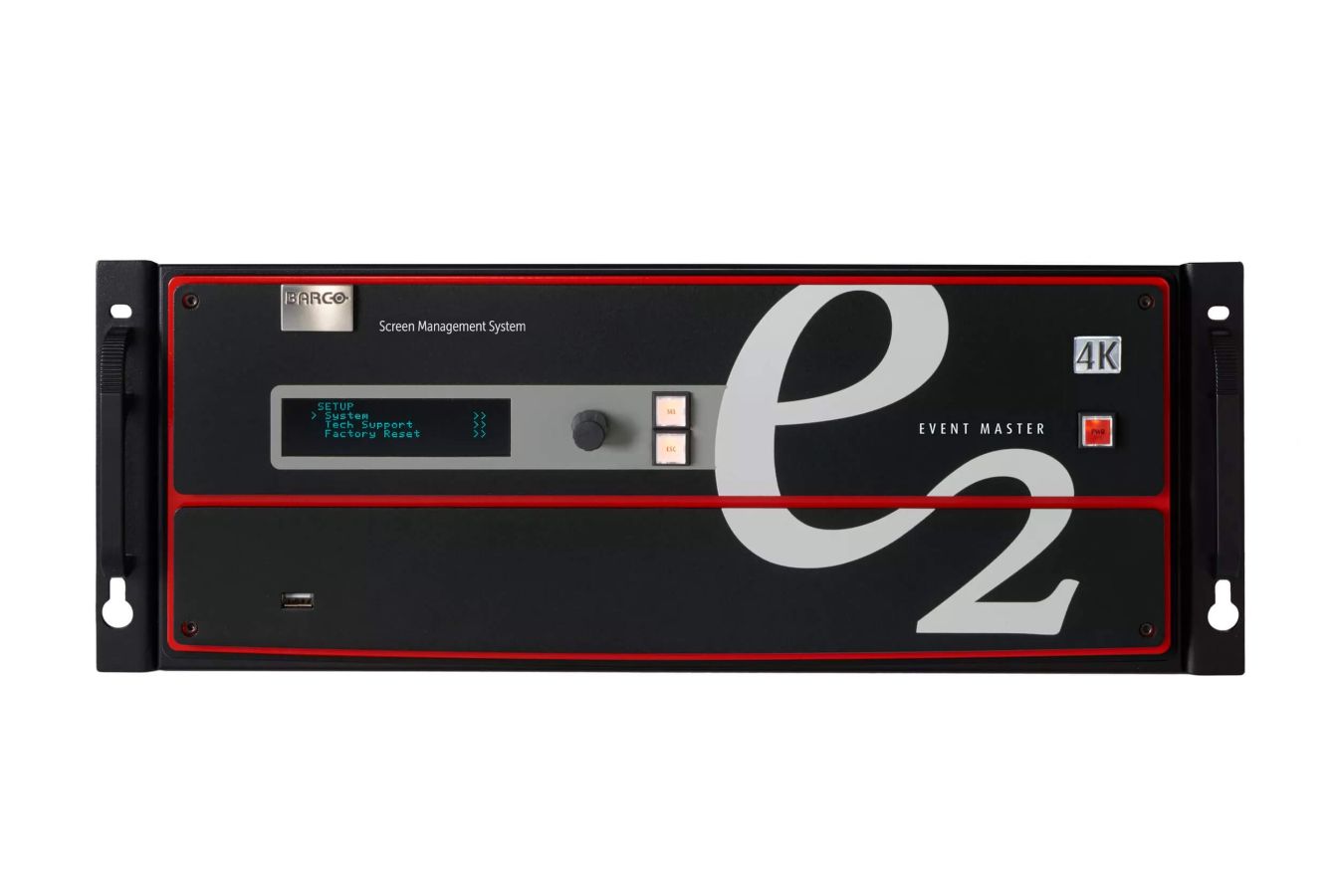

E2 GEN2 Screen Management Processor Photo Gallery

Tech Specs

  • Inputs:
    Card Based Up To 40, Genlock
  • Outputs:
    Card Based Up To 18, Genlock Loop
  • Dimensions:
    4 RU, 569 x 432 x 178 mm
  • Weight:
    31Kg
  • Power:
    1,100W

Solutionist Approved


E2 GEN2 Screen Management Processor Content
