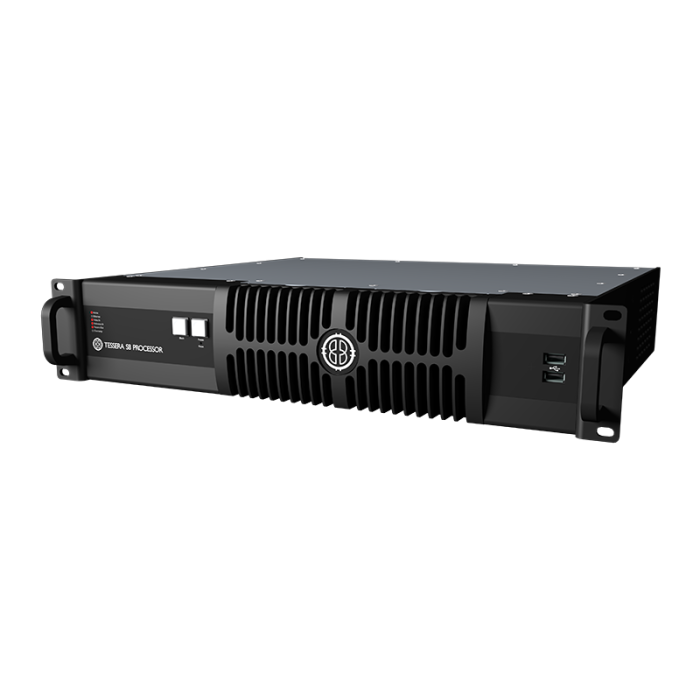

Brompton Tessera S8 LED Processor


Awesome Features

  • HDR
  • Dynamic Calibration
  • 4K Support

The Tessera S8 LED processor has all the features of the SX40 with 8 1G outputs. It is perfect for mid to small size LED walls that require high quality 4K processing.
LED Processing

Manufacture Notes

Brompton Technology’s Tessera S8 LED processor is perfect for high-profile projects that don’t require large output capacity but would still benefit from the flexibility of Brompton’s industry-leading Tessera feature set and easy-to-use software. Sitting alongside the award-winning Tessera SX40, this mid-range LED processor provides stunning results with support for all of Brompton’s ground-breaking Tessera processing features, including HDR and Dynamic Calibration as well as Extended Bit Depth, HFR+ (High Frame Rate) and Frame Remapping. Additionally, Stacking can be used to control multiple processors as one. It offers full 4K60 input support, with eight 1G outputs each capable of 525K pixels at 60Hz, 8 bits per colour, and has a zero-latency up/down scaler that matches the source to the screen. The Tessera S8 allows for full HD output with closed loop redundancy, making it the obvious choice for rental companies looking to maximise their offering for those more cost-conscious events.

Why this Solution

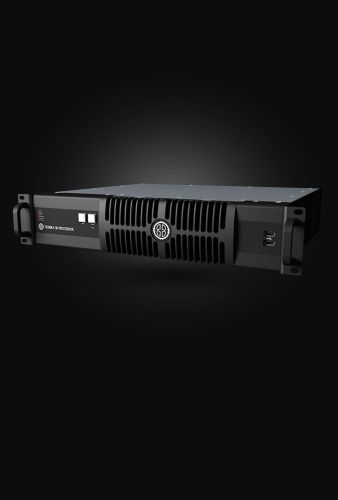

Brompton Tessera S8 LED Processor Photo Gallery

Tech Specs

  • Control:
    Tessera Control, Tessera Remote, Direct
  • Inputs:
    12G SDI, HDMI 2.0, Genlock
  • Outputs:

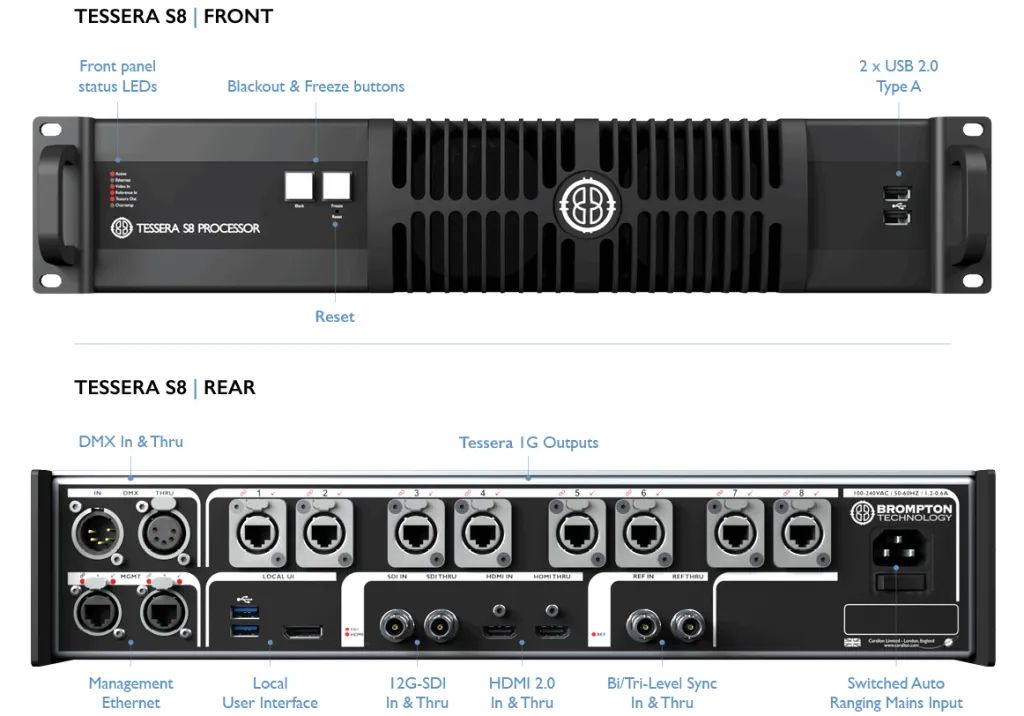

    12G SDI Loop, HDMI 2.0 Loop, Genlock Loop, 8x 1GB Ethernet, DP 1.2 GUI
  • Dimensions:
    482.6 x 406.4 x 88.9 mm
  • Weight:
    7.5KG
