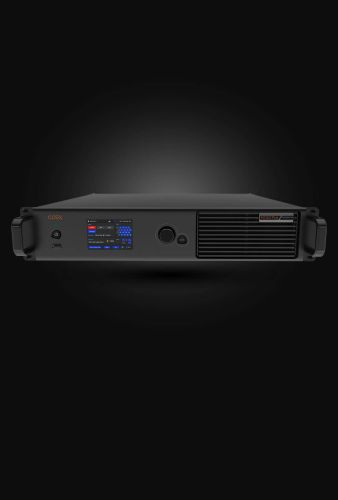

MX40 Pro


Awesome Features

  • VP Optimized
  • VMP Software
  • Inputs: 3 × HDMI2.0 Loop 1 × 12G SDI Loop 1 × DP1.2
  • Outputs: 20 × EtherCON 4×10G OPT

The MX40 Pro is Novastars latest LED processor that gives supporting functions, power, and control for utilizing their products in Virtual Production volumes. It is paired with an upgraded software VMP which is a much needed improvement over NovaLCT.
Large Venue, Live Events

Manufacture Notes

MX Series Controller MX40 Pro is a 4K LED display controller from NovaStar™ that offers a variety of input connectors (HDMI 2.0, DP 1.2 and 12G-SDI), 20x Ethernet output ports, plus 4x 10G optical ports for copying output port data. It works great with NovaStar’s VMP screen configuration software and A10s Pro receiving cards, which provides users with the ultimate experience. Packed With Features With the MX40 Pro, not only do you get a high-end video controller – but also a powerful processor with a built-in color adjustment system. True 12bit, HDR, high frame rate, and 3D technologies are all at your fingertips. Its color calibration can faithfully reproduce and replace colors, and it offers XR function, LED Image Booster, Dynamic Booster, and more.

Why this Solution

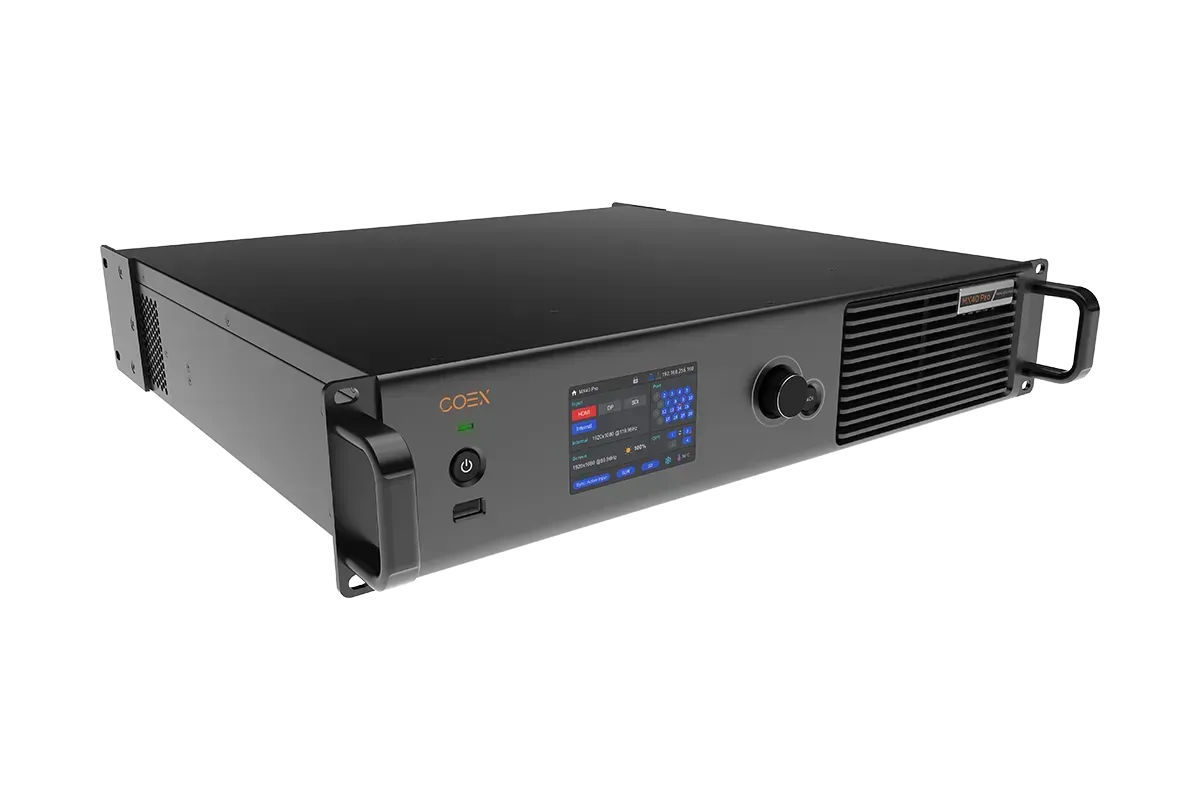

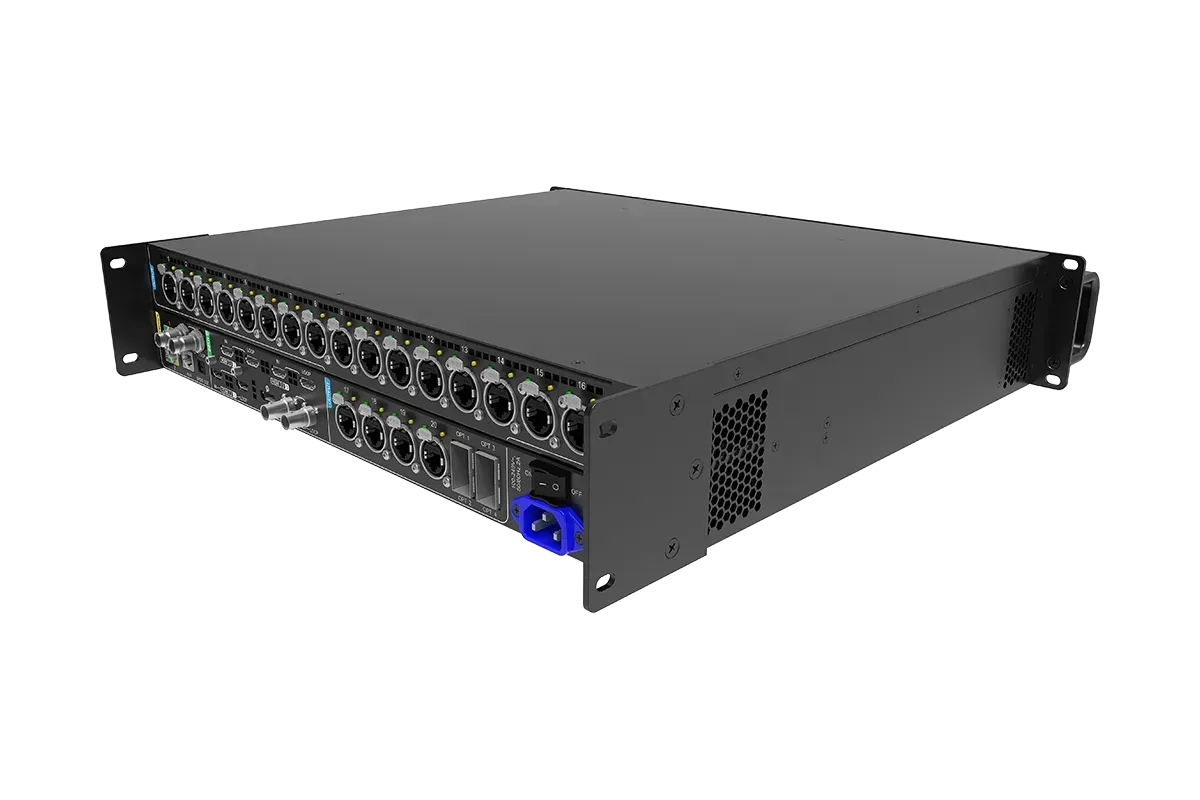

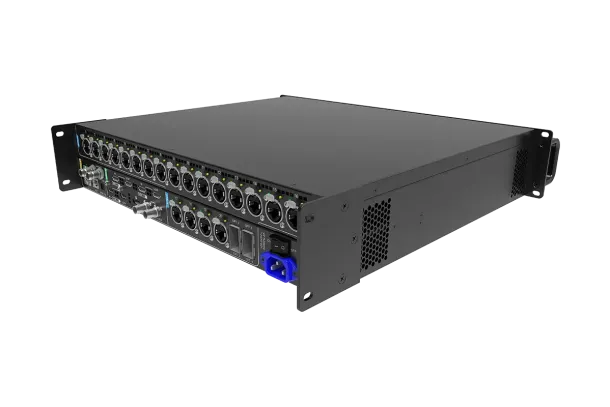

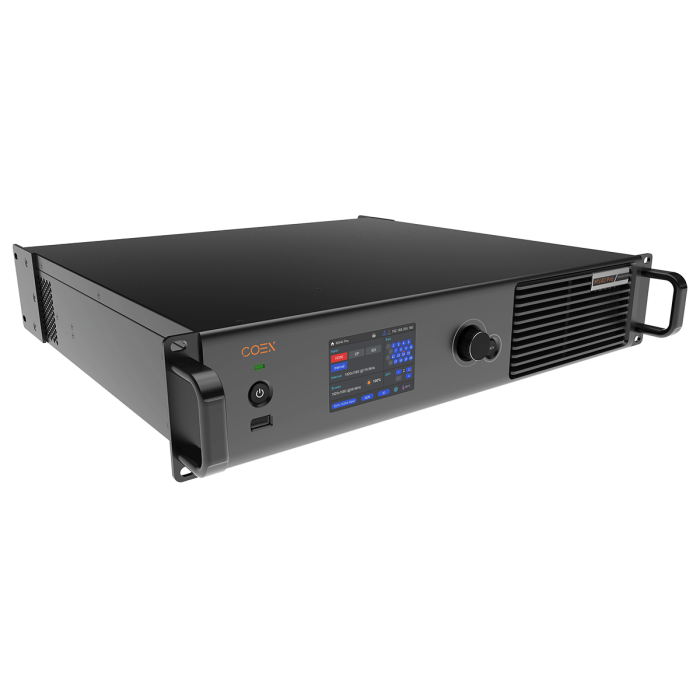

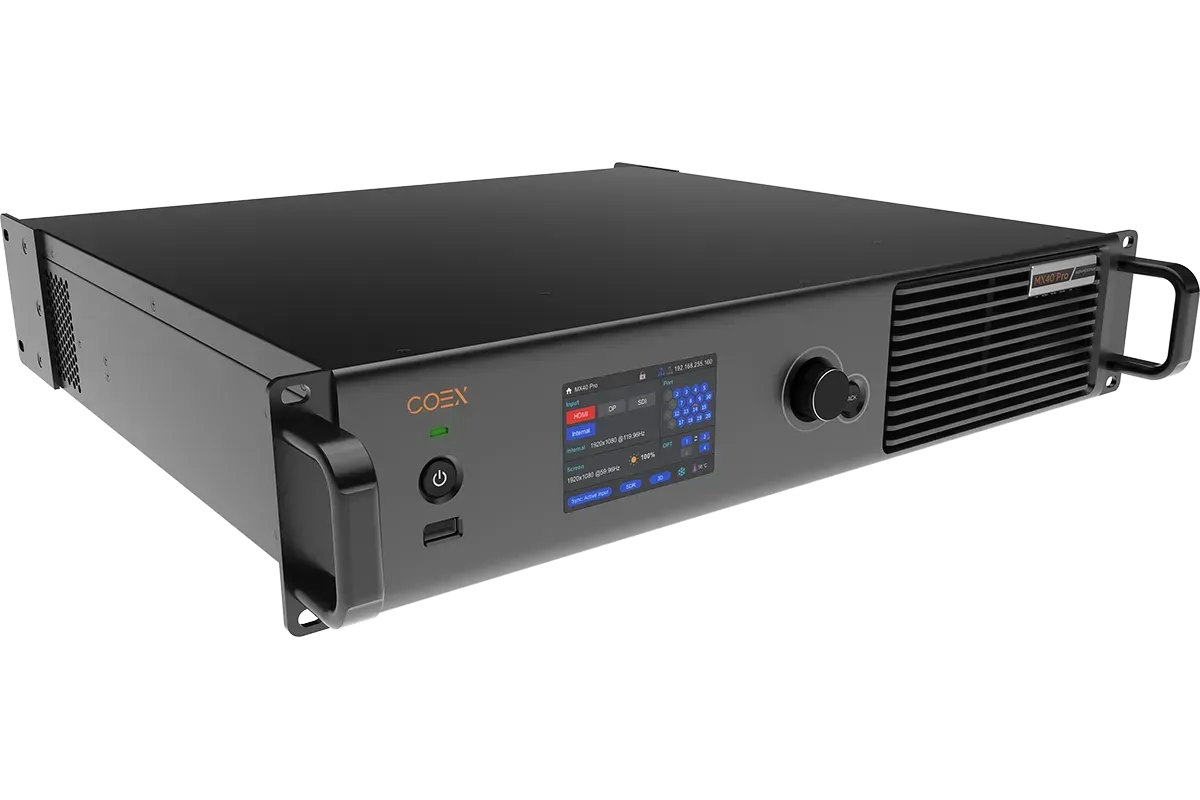

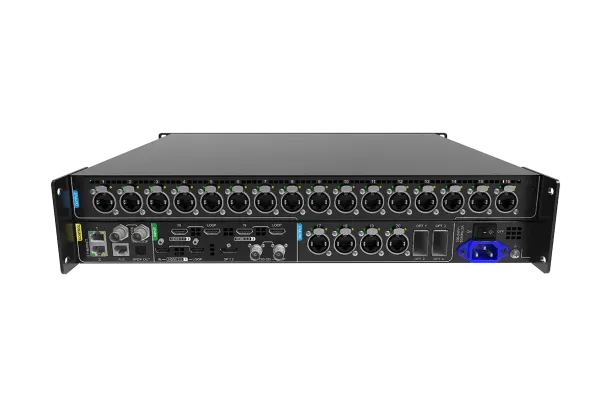

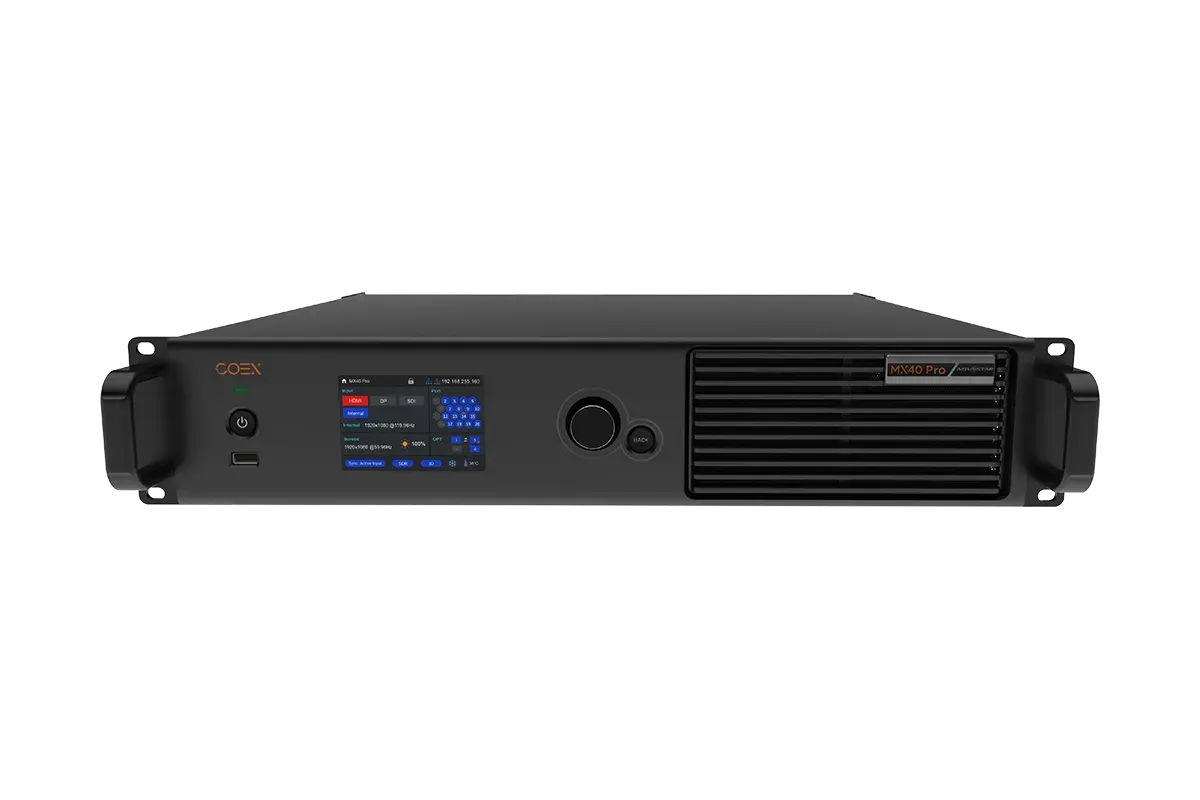

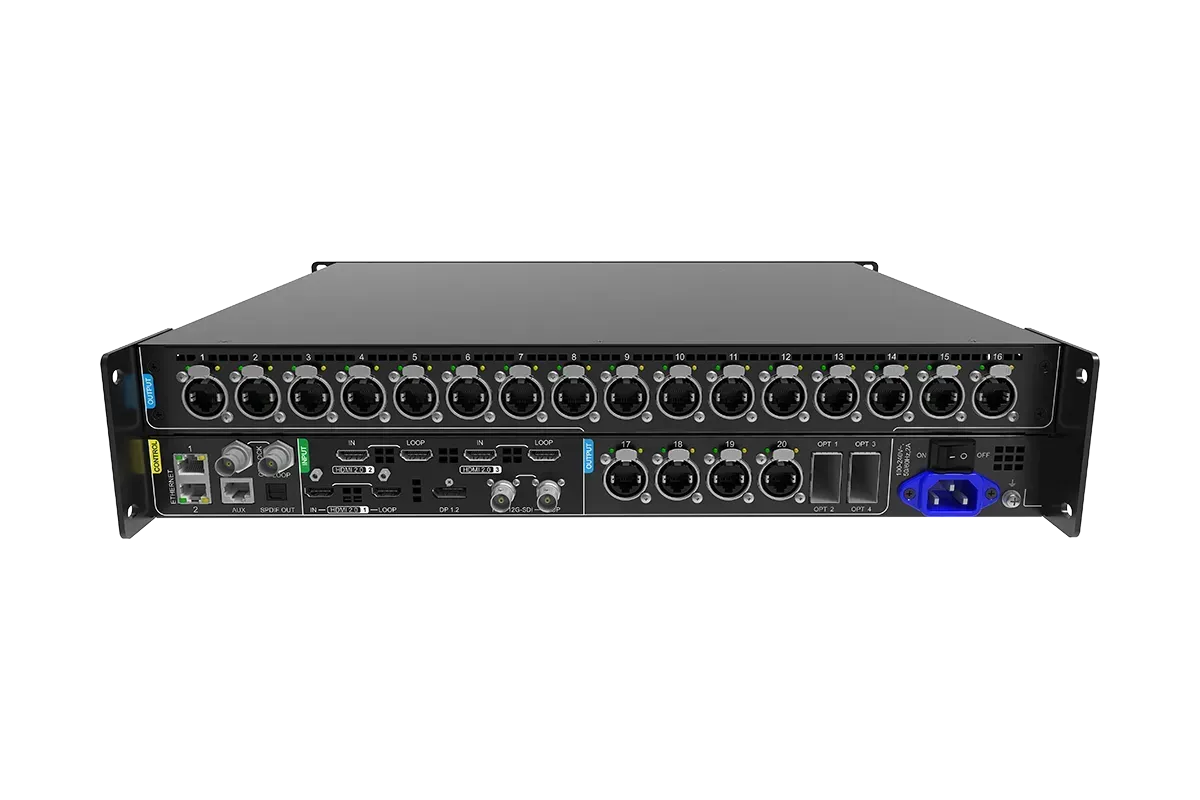

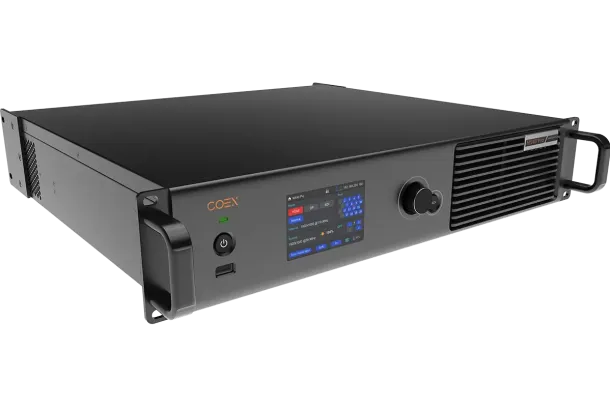

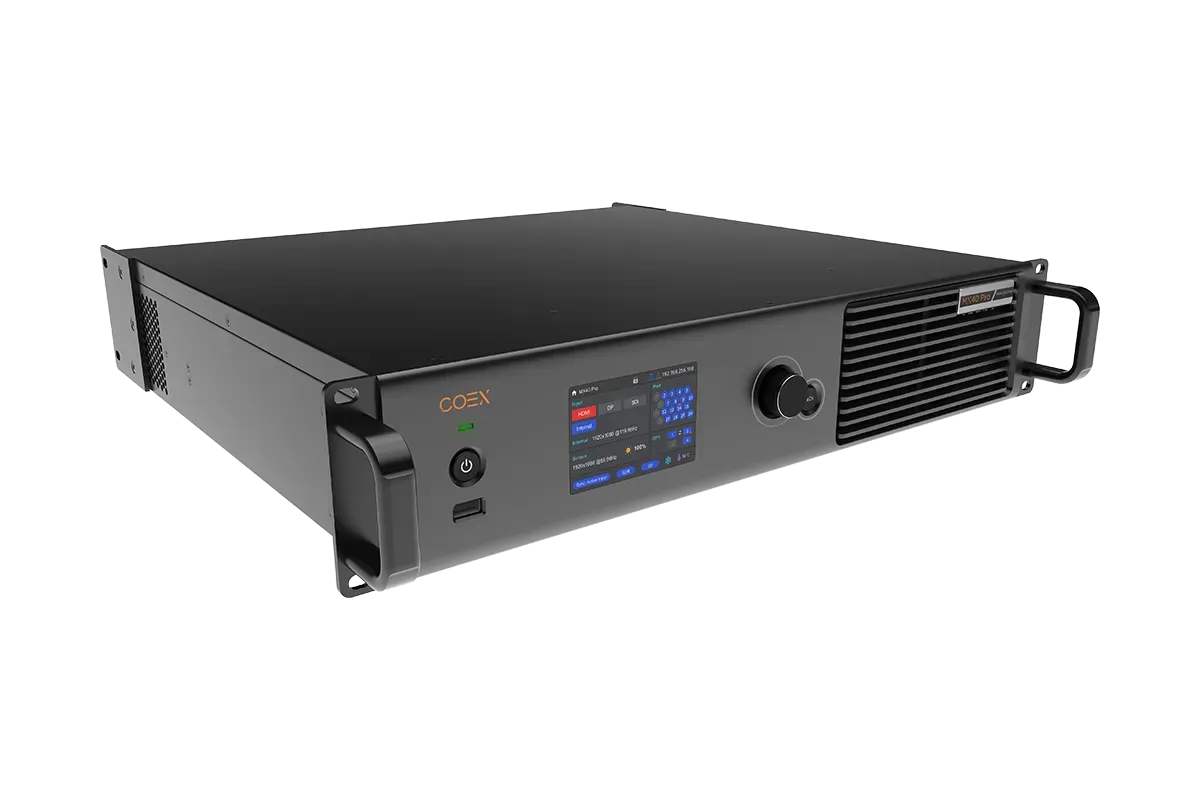

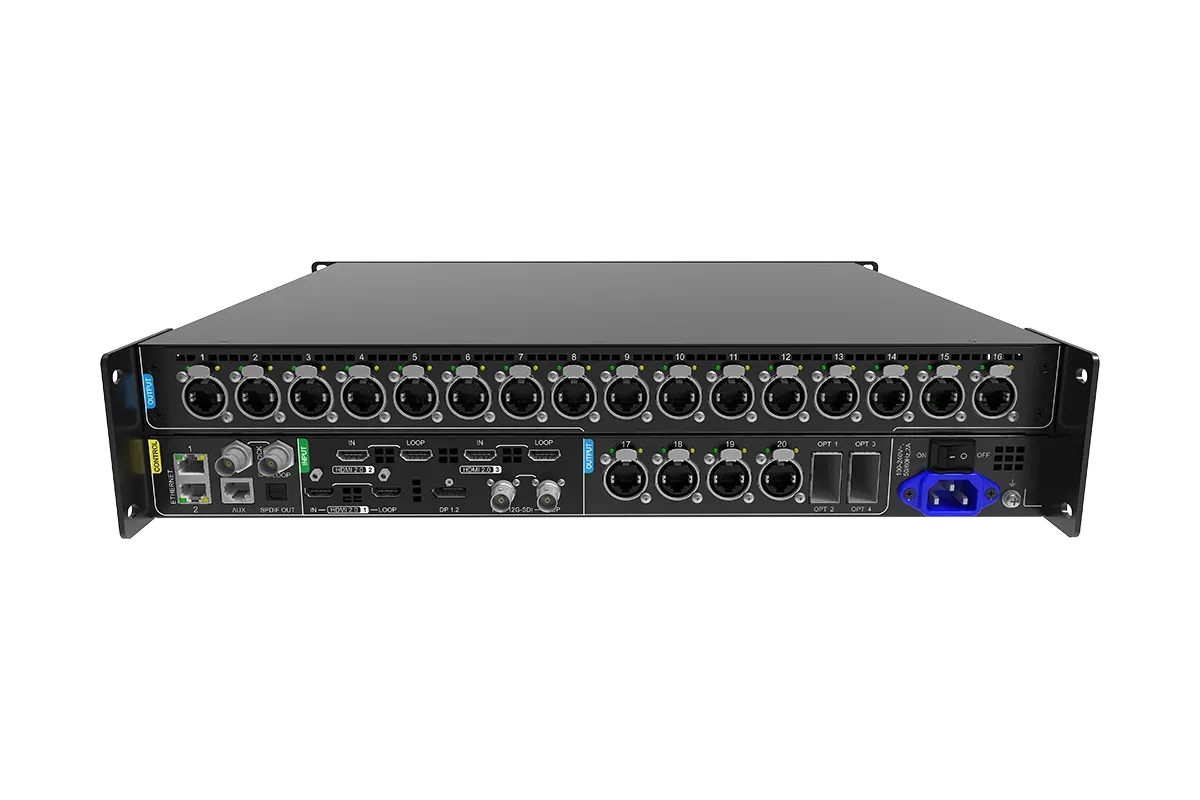

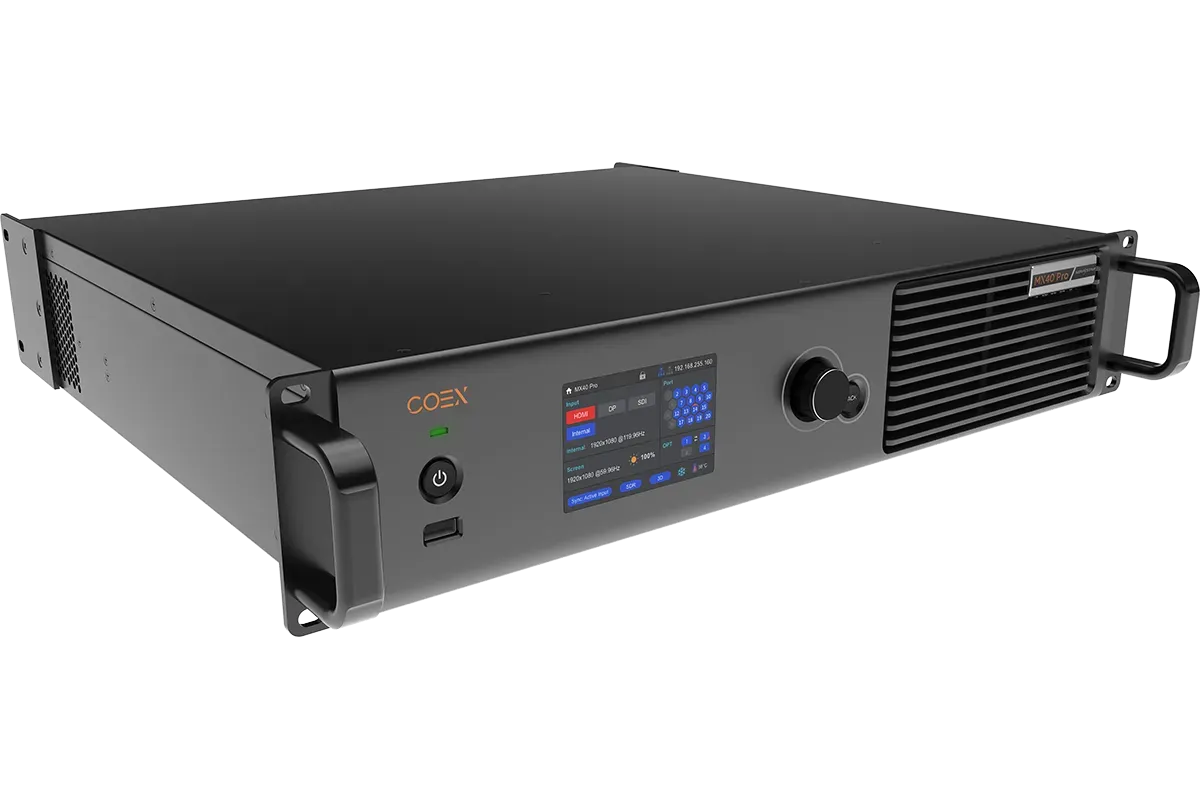

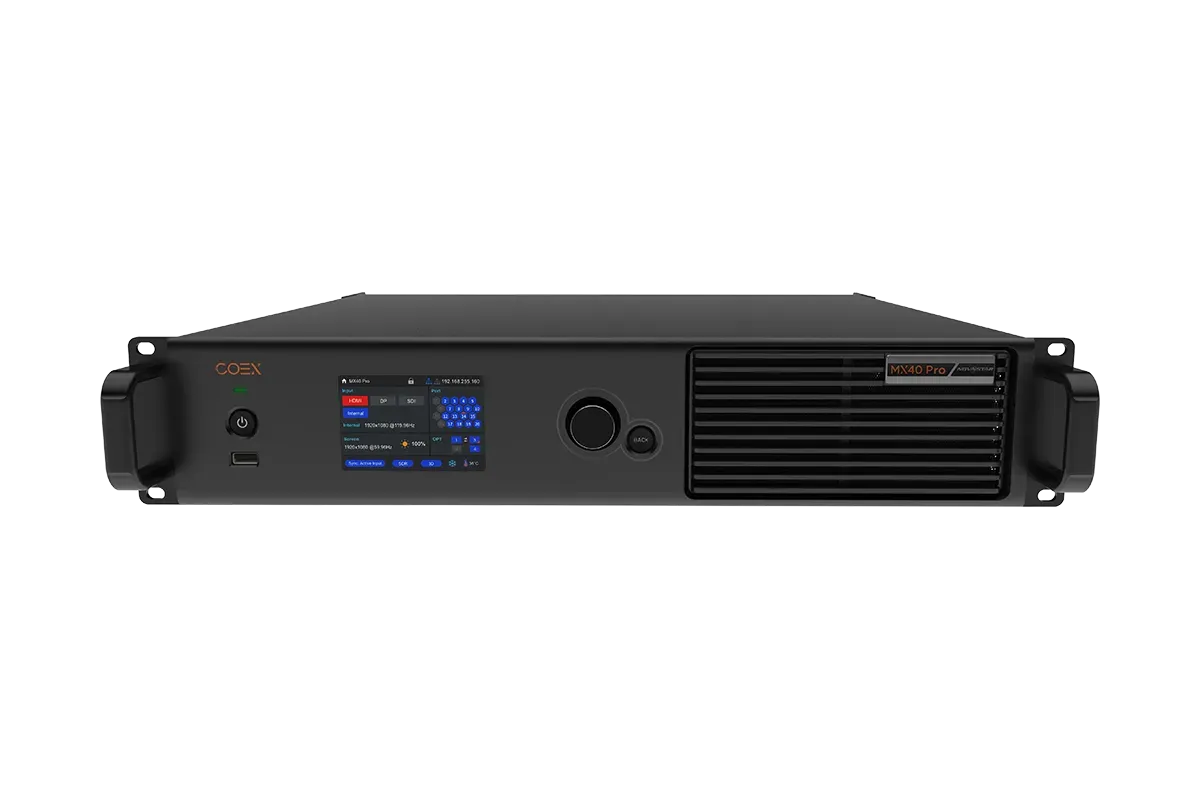

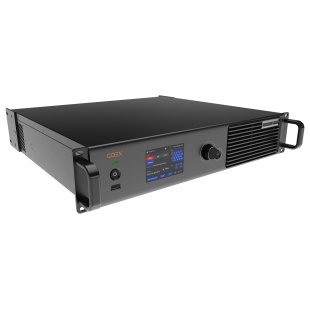

MX40 Pro Photo Gallery

Tech Specs

  • Resolution:
    Max width: 8192 pixels (8192×1080@60Hz) Max height: 7680 pixels (1080×7680@60Hz)
  • Inputs:
    12G SDI, HDMI 2.0, DP 1.2, Genlock
  • Outputs:
    20x 1G Ethernet, 4x 10G SFP+, Genlock
  • Dimensions:
    2 RU, 482.6 x 467.0 x 94.2 mm
  • Power:
    70W
