Pulse 4K

Awesome Features

  • 2 PGM Outs
  • 4K
  • HDR

The Pulse 4K is a powerful 4K60 multi-layer video mixer and seamless presentation switcher, with ten inputs, configurable up to (2)PGM outputs and a dedicated Multiviewer.
Small venue, Live event

Manufacture Notes

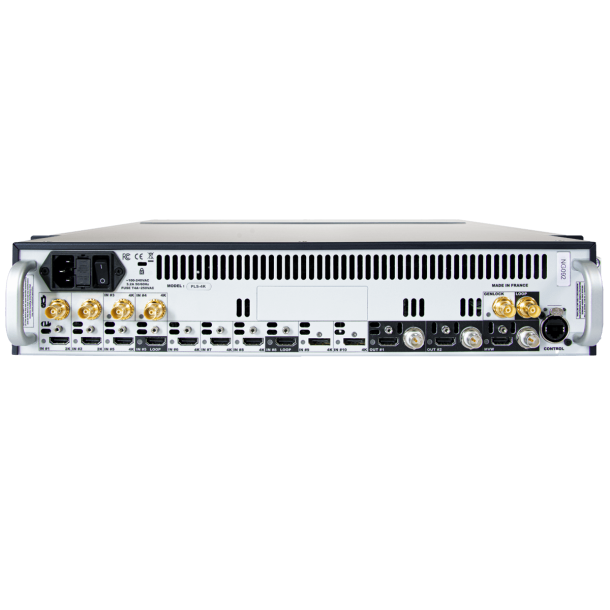

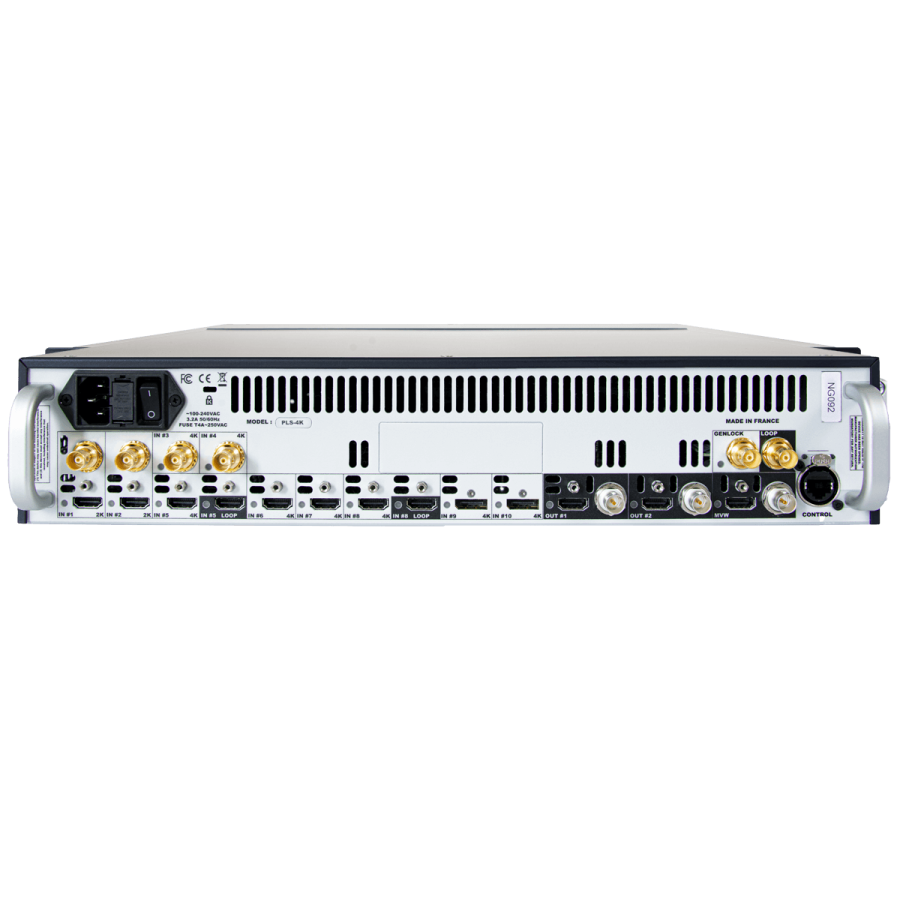

Versatile 4K Connectivity The Pulse 4K is a powerful 4K60 multi-layer mixer and seamless presentation switcher equipped with ten inputs, including eight 4K60 inputs and two 1080p inputs with user-selectable HDMI and 3G-SDI connectors. The Pulse 4K has two 4K60 mirrored HDMI and SDI outputs that can be configured either as Program & AUX or as two independent Program outputs. In addition, the Pulse 4K has a dedicated multiviewer to monitor your Program and Preview screens as well as all your inputs. Quality without Compromise Based on the extremely robust and reliable Midra™ 4K platform as well as on the 5th generation scaling engine inherited from the LivePremier™ series, the Pulse 4K features ultralow latency 4K60 10-bit 4:4:4 image processing, uncompromising video quality, true seamless switching, HDR support and HDCP 2.2 compatibility, which makes it an ideal solution for your medium-sized live events and fixed installations. Smart Functionalities The Pulse 4K offer dozens of powerful functionalities that will help you to produce elegant AV presentations: custom output formats, livestreaming of any Input or Output, Luma/Chroma keying, AOI, HFR up to 144Hz… The Pulse 4K also allows to deembed or embed digital audio on all the inputs and outputs. An audio option is available to add Dante™ 32×32 audio networking support to the Pulse 4K. Powerful and Flexible Control Options The Pulse 4K has been designed to be entirely operated from the easy-touse front panel. You can also use the on-board intuitive HTML5-based user interface, the Web RCS, designed to allow for the ease of setup and to ensure flawless control of your presentations. The Pulse 4K also features Ethernet control via a standard TCP/IP socket connection supported by all major third-party control systems. The Pulse 4K can also be controlled by the free Crestron® driver as well as by AW VideoCompositor, a unique drag and drop customizable Crestron® user interface. Additionally, the Pulse 4K can be operated by a comprehensive range of remote control panel options such as the powerful event controller RC400T or the compact Control Box3 and Shot Box2. The Pulse 4K is also compatible with various control software such as Universe or Companion.

Why this Solution

Pulse 4K Photo Gallery

Tech Specs

  • Control:
    Front Panel, Browser
  • Inputs:
    4x HDMI 2.0, 2x DP 1.2, 2x 12G SDI, 2x HDMI 1.4/3GSDI, RTMP, Dante
  • Outputs:
    2x HDMI 2.0, 2x 12G SDI, HDMI 1.4 and 3G MVR, RTMP, Dante
  • Dimensions:
    2 RU, 440 x 434 x 88 mm
  • Weight:
  • Power:
